IPM-based fan solution
Xiner Xiner Loading... 2018-12-03

Application area: Air conditioning indoor and outdoor fans

Program Highlights:

  • High efficiency and low noise
  • High efficiency and low noise
  • Easy to develop, short development cycle

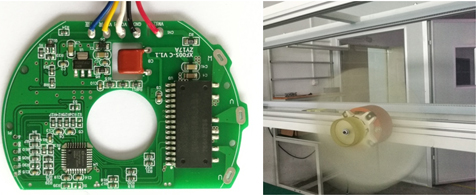

IPM-based fan solution

Key:

IPM XNM50250AT (ATS) 1PCS
IPM XNM50550AT (ATS) 1PCS
IPM XNS50660AT (ATS) 1PCS
IPM XNM03H54A5 3PCS
IPM XNM05H54A5 3PCS

Performance metrics:

Parameters Metrics
Input voltage 220V AC ±20%
Input frequency 50Hz±10%
Maximum output power 100W
Modulation frequency 16KHz
Maximum speed 1000 RPM
control method FOC
Current sampling method Three resistor
Protective function Overcurrent, overvoltage, undervoltage, overtemperature, stall protection
Length, width and height 84mm*57mm*5mm
