Description

The IGBT module introduced in Xiner adopts the trench field stop technology (Trench Field Stop), the trench cell structure greatly increases the power density of the device, and the electric field is used at the collector end of the chip through the ultra thin wafer process (Ultra Thin Wafer Process). Field Stop structure, which significantly reduces the device's saturation turn-on voltage drop (Vce(sat)) and turn-off loss (Eoff). Compared to the previous generation, device power loss (sum of conduction loss and switching loss) Reduced by 33%, with independent voltage and fast recovery diode (FRD), suitable for all kinds of switching applications. The module is packaged in a standard package and has stable electrical parameters and robust reliability in harsh environments.

Features and Benefits:

  • Low saturation conduction voltage drop (Vce(sat));
  • Low switching loss (Ets);
  • High breakdown voltage (BVces);
  • High short circuit current tolerance (Icsc);
  • Electrical parameter repeatability and consistency;
  • High reliability.

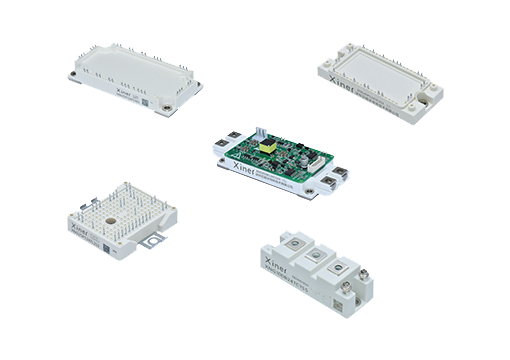

IGBT Module
Parameters
Product Name Voltage Class IC(nom) Housing Dimensions Configuration
IF(nom)
XNG20PI12TL1S3 600V 20 L1 34×48×15.5mm PIM Three Phase Input Rectifier
XNG30PI12TL1S3 600V 30 L1 34×48×15.5mm PIM Three Phase Input Rectifier
XNG15PI24TL1S3 1200V 15A L1 34×48×12mm PIM Three Phase Input Rectifier
XNG25PI24TL2S3 1200V 25A L2 57×48×12mm PIM Three Phase Input Rectifier
XNG40PI24TL2S3 1200V 40A L2 57×48×12mm PIM Three Phase Input Rectifier
XNG25PI24TC3AS3 1200V 25A C3 107×45×17mm PIM Three Phase Input Rectifier
XNG25PI24TC3S3 1200V 25A C3 107×45×17mm PIM Three Phase Input Rectifier
XNG40PI24TC3AS3 1200V 40A C3 107×45×17mm PIM Three Phase Input Rectifier
XNG40PI24TC3S3 1200V 40A C3 107×45×17mm PIM Three Phase Input Rectifier
XNG50D24TC3S6 1200V 50A C3 107×45×17mm PIM Three Phase Input
XNG50PI24TC4AS5 1200V 50A C4 122×62×17mm PIM Three Phase Input Rectifier
XNG50PI24TC4S5 1200V 50A C4 122×62×17mm PIM Three Phase Input Rectifier
XNG75PI24TC4AS5 1200V 75A C4 122×62×17mm PIM Three Phase Input Rectifier
XNG75PI24TC4S5 1200V 75A C4 122×62×17mm PIM Three Phase Input Rectifier
XNG100PI24TC4AS5 1200V 100A C4 122×62×17mm PIM Three Phase Input
XNG100PI24TC4S5 1200V 100A C4 122×62×17mm PIM Three Phase Input
XNG150D24KC4A5 1200V 150A C4 122×62×17mm SixPack Three Phase Bridge
XNG200D24KC4A5 1200V 200A C4 122×62×17mm SixPack Three Phase Bridge
XNG200D13TC4S3 650V 200A C4 122×62×17mm SixPack Three Phase Bridge
XNG50B24TC1S5  1200V 50A C1 94×34×30mm Half Bridge
XNG75B24KC1S 1200V 75A C1 94×34×30mm Half Bridge
XNG75B24UC1S 1200V 75A C1 94×34×30mm Half Bridge
XNG100B24KC1S 1200V 100A C1 94×34×30mm Half Bridge
XNG100B24UC1S 1200V 100A C1 94×34×30mm Half Bridge
XNG150B24KC1S 1200V 150A C1 94×34×30mm Half Bridge
XNG150B24UC1S 1200V 150A C1 94×34×30mm Half Bridge
XNG150B24KC2S 1200V 150A C2 106×62×30mm Half Bridge
XNG150B24UC2S 1200V 150A C2 106×62×30mm Half Bridge
XNG200B24KC2S 1200V 200A C2 106×62×30mm Half Bridge
XNG200B24UC2S 1200V 200A C2 106×62×30mm Half Bridge
XNG300B24KC2S 1200V 300A C2 106×62×30mm Half Bridge
XNG300B24UC2S 1200V 300A C2 106×62×30mm Half Bridge
XNG450B24KC2S 1200V 450A C2 106×62×30mm Half Bridge
XNG450B24UC2S 1200V 450A C2 106×62×30mm Half Bridge
XNG300B24KC5S 1200V 300A C5 152×62×17mm Half Bridge
XNG300B24LC5E 1200V 300A C5 152×62×17mm Half Bridge
XNG600B24KC5A5 1200V 600A C5 152×62×17mm Half Bridge
XNG600B24LC5E 1200V 600A C5 152×62×17mm Half Bridge
XNG300B34KC5E 1700V 300A C5 152×62×17mm Half Bridge
XNG450B34KC5A5 1700V 450A C5 152×62×17mm Half Bridge
XNG600B34LC5E 1700V 600A C5 152×62×17mm Half Bridge
XNG300D13TH4A3 650V 300A H4 140×112×17mm SixPack Three Phase Bridge
XNG400D13TH4A3 650V 400A H4 140×112×17mm SixPack Three Phase Bridge
XNG400D13TH6A3 650V 400A H6 140×72×17mm SixPack Three Phase Bridge
XNG660D13TH5A3 650V 660A H5 152×92×15.7mm SixPack Three Phase Bridge
